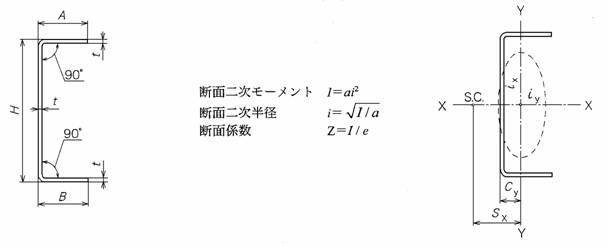

寸法
mm |
断面積
cm2 |
単位質量
k/m |
重心の位置cm |
断面二次モーメント
cm4 |
断面二次半径
cm |
断面係数
cm3 |
| Ｈ×Ａ×Ｂ |
ｔ |
ａ |
301L
|
316 |
410L
410S |
436L |
Cx |
Cy |
Ix |
Iy |
ix |
iy |
Zx |
Zy |
| 40×20×20 |
2 |
1.469 |
1.16 |
1.17 |
1.14 |
1.13 |
0 |
0.59 |
3.47 |
0.56 |
1.54 |
0.62 |
1.74 |
0.40 |
| 40×20×20 |
3 |
2.104 |
1.67 |
1.68 |
1.63 |
1.62 |
0 |
0.64 |
4.66 |
0.77 |
1.49 |
0.61 |
2.33 |
0.57 |
| 50×25×25 |
2 |
1.869 |
1.48 |
1.49 |
1.45 |
1.44 |
0 |
0.72 |
7.07 |
1.13 |
1.95 |
0.78 |
2.83 |
0.64 |
| 50×25×25 |
3 |
2.704 |
2.14 |
2.16 |
2.10 |
2.08 |
0 |
0.76 |
9.73 |
1.59 |
1.90 |
0.77 |
3.89 |
0.91 |
| 60×30×30 |
2 |
2.269 |
1.80 |
1.81 |
1.76 |
1.74 |
0 |
0.84 |
12.6 |
2.01 |
2.35 |
0.94 |
4.19 |
0.93 |
| 60×30×30 |
3 |
3.304 |
2.62 |
2.64 |
2.56 |
2.54 |
0 |
0.89 |
17.6 |
2.84 |
2.31 |
0.93 |
5.86 |
1.34 |
| 70×35×35 |
2 |
2.669 |
2.12 |
2.13 |
2.07 |
2.06 |
0 |
0.97 |
20.4 |
3.24 |
2.76 |
1.10 |
5.82 |
1.28 |
| 70×35×35 |
3 |
3.904 |
3.10 |
3.12 |
3.03 |
3.01 |
0 |
1.01 |
28.8 |
4.62 |
2.71 |
1.09 |
8.22 |
1.86 |
| 75×35×35 |
2 |
2.769 |
2.20 |
2.21 |
2.15 |
2.13 |
0 |
0.94 |
23.9 |
3.31 |
2.94 |
1.09 |
6.38 |
1.29 |
| 75×35×35 |
3 |
4.054 |
3.21 |
3.24 |
3.14 |
3.12 |
0 |
0.98 |
33.9 |
4.73 |
2.89 |
1.08 |
9.03 |
1.88 |
| 80×40×40 |
2 |
3.069 |
2.43 |
2.45 |
2.38 |
2.36 |
0 |
1.09 |
30.8 |
4.90 |
3.17 |
1.26 |
7.71 |
1.68 |
| 80×40×40 |
3 |
4.504 |
3.57 |
3.59 |
3.49 |
3.47 |
0 |
1.14 |
43.9 |
7.03 |
3.12 |
1.25 |
1.10 |
2.46 |
| 80×40×40 |
4 |
5.874 |
4.66 |
4.69 |
4.55 |
4.52 |
0 |
1.18 |
55.5 |
8.97 |
3.07 |
1.24 |
13.9 |
3.19 |
| 80×40×40 |
5 |
7.178 |
5.69 |
5.73 |
5.56 |
5.53 |
0 |
1.23 |
65.7 |
10.7 |
3.03 |
1.22 |
16.4 |
3.88 |
| 80×40×40 |
6 |
8.417 |
6.67 |
6.72 |
6.52 |
6.48 |
0 |
1.28 |
74.6 |
12.3 |
2.98 |
1.21 |
18.6 |
4.53 |
| 100×50×50 |
2 |
3.869 |
3.07 |
3.09 |
3.00 |
2.98 |
0 |
1.34 |
61.5 |
9.73 |
3.99 |
1.59 |
12.3 |
2.66 |
| 100×50×50 |
3 |
5.704 |
4.52 |
4.55 |
4.42 |
4.39 |
0 |
1.39 |
88.5 |
14.1 |
3.94 |
1.57 |
17.7 |
3.90 |
| 100×50×50 |
4 |
7.474 |
5.93 |
5.96 |
5.79 |
5.75 |
0 |
1.43 |
113 |
18.2 |
3.89 |
1.56 |
22.6 |
5.09 |
| 100×50×50 |
5 |
9.178 |
7.28 |
7.32 |
7.11 |
7.07 |
0 |
1.48 |
136 |
21.9 |
3.84 |
1.54 |
27.1 |
6.23 |
| 100×50×50 |
6 |
10.82 |
8.58 |
8.63 |
8.39 |
8.33 |
0 |
1.53 |
156 |
25.4 |
3.79 |
1.53 |
31.1 |
7.31 |
| 120×60×60 |
2 |
4.669 |
3.70 |
3.73 |
3.62 |
3.60 |
0 |
1.59 |
108 |
17.0 |
4.80 |
1.91 |
18.0 |
3.86 |
| 120×60×60 |
3 |
6.904 |
5.48 |
5.51 |
5.35 |
5.32 |
0 |
1.64 |
156 |
24.8 |
4.76 |
1.89 |
26.0 |
5.68 |
| 120×60×60 |
4 |
9.074 |
7.20 |
7.24 |
7.03 |
6.99 |
0 |
1.68 |
201 |
32.1 |
4.71 |
1.88 |
33.5 |
7.44 |
| 120×60×60 |
5 |
11.18 |
8.86 |
8.92 |
8.66 |
8.61 |
0 |
1.73 |
243 |
39.0 |
4.66 |
1.87 |
40.5 |
9.13 |
| 120×60×60 |
6 |
13.22 |
10.5 |
10.5 |
10.2 |
10..2 |
0 |
1.78 |
281 |
45.4 |
4.61 |
1.85 |
46.8 |
10.8 |
|
